    AMSEC CF4524 AMVAULT TL-30 Fire Rated Composite Safe

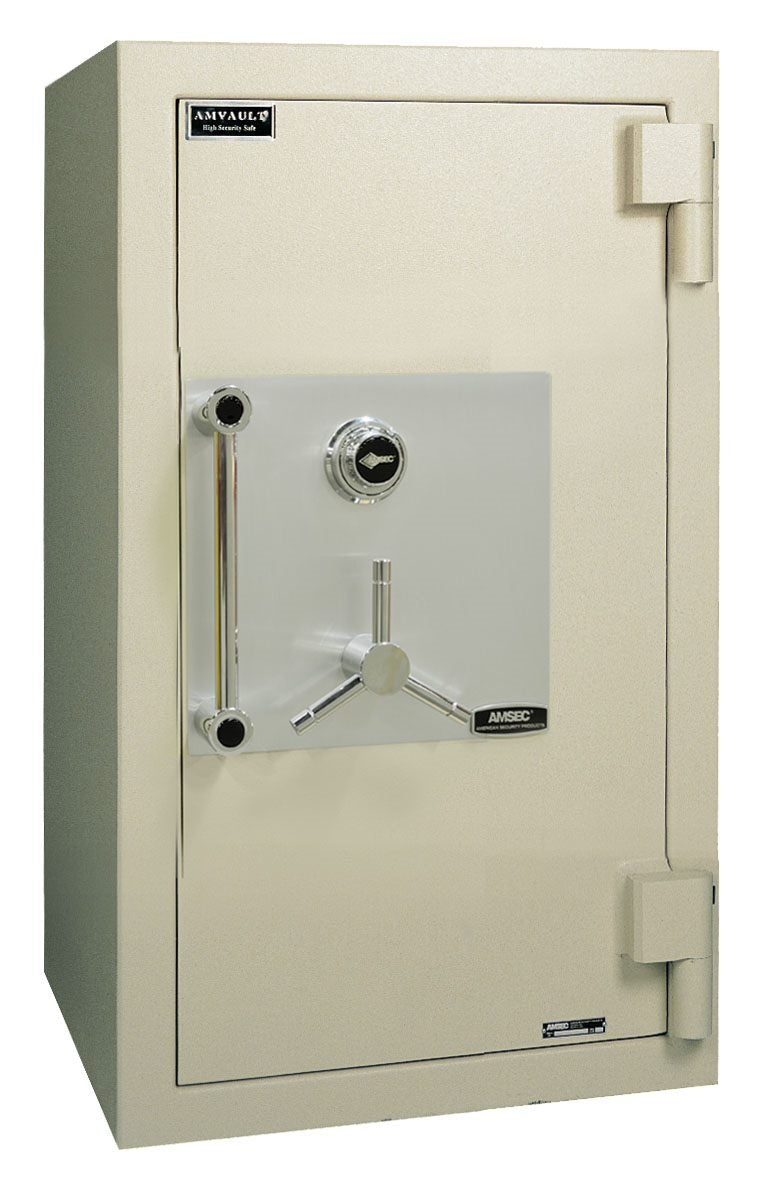

    Product Image - AMSEC CF4524 AMVAULT TL-30 Fire Rated Composite Safe

    AMSEC CF4524 AMVAULT TL-30 Fire Rated Composite Safe

    During extreme testing procedures, AMVAULT composite safes demonstrated the ability to withstand severe attacks by experienced U.L. experts using powerful tools such as sledgehammers, power saws, carbide disc cutters, drills, etc., and without fail, were awarded the TL-30 labels.

    Besides withstanding the most concentrated attacks by sophisticated burglars, each AMVAULT safe offers a Two Hour, 350 F factory fire test certification, ensuring the protection of the vault's contents against intense fires.

    Features:

    Door:

    • Overall thickness of 5-3/4" and is constructed with a 2-3/4" defense barrier of outer and inner steel plates creating a single structure enclosing a unique, high density fire and burglary resistant composite material.
    • Defense barrier houses a proprietary amalgamation of nuggets and steel fibers to withstand concentrated attacks with the most sophisticated equipment used by burglars today.
    • The Amvault TL-30 offers a massive solid steel hard plate covering the entire door.

    Body:

    • The Amvault formed body has a total protective thickness of 3-1/2" enclosing a high density fire resistant composite material with nuggets and steel fibers.
    • A reinforced drill resistant door frame protects the door and each individual bolt chamber from severe side attacks.
    • A proprietary inner barrier protects against peeling attacks.
    • (3) each High strength adjustable shelves. (Shelves are ALMOND color ONLY)
    • Anchor Holes (recessed) and an 1/2" anchor bolt kit are now standard on AMVAULT CF models. The CF4524 comes standard with 4 anchor holes.

    Fire Endurance:

    • Two hour, 350 F factory fire rating. Tested at temperatures up to 1850 F

    Locking Mechanism:

    • Equipped with six to ten massive 1-1/2" diameter chrome plated solid steel locking bolts. Each bolt moves deep into the body's protected bolt chambers.
    • Entire boltwork mechanism is also protected by a spring operated boltwork detent system. Bolts stay in the retracted position when the door is opened and automatically engage when the door is closed.

    Locks:

    • Equipped with a U.L. listed Group II key changeable combination lock. The lock is protected by a massive drill shattering hard plate and two additional spring loaded devices.

    Hinges:

    • Offers a vertical height adjustment and utilizes an oil impregnated bearing ensuring easy door operation.

    AMVAULT High Security Composite safes have passed Underwriter's Laboratories most recent testing procedures ensuring you today's best protection. AMVAULT TL-30 U.L. listed composite safes qualify for Mercantile & Broadform Insurance Class F (TL-30) with a Bank Rating of G (TL-30). Two Hour Class 350 F manufacturers' fire label.

    Underwriter's Laboratories' Burglary Rating Classification

    U.L. Label: Burglary Classification TL-30:

    Signifies a combination-locked safe designed to offer a moderate degree of protection against attack by common mechanical and electrical hand tools and any combination of these means.

    Construction Requirements

    • U.L. listed Group II, 1 or 1R combination lock.
    • 750 lbs. minimum or comes with instructions for anchoring in a larger safe, concrete blocks or on the premises where used.
    • Body walls of material equivalent to at least 1" open hearth steel with a minimum tensile strength of 50,000 P.S.I.
    • Walls fastened in a manner equivalent to continuous 1/4" penetration weld of open hearth steel with minimum tensile strength of 50,000 P.S.I.

    Performance Requirements

    Successfully resist entry* for a net working time of 30 minutes when attacked with common hand tools, picking tools, mechanical or portable electric tools, grinding points, carbide drills and pressure applying devices or mechanisms, abrasive cutting wheels and power saws.

    * Entry = opening the door or making a six square inch opening entirely through the door or front face.

    Are you looking for extreme theft and fire protection? or are you a Jeweler? Coin Collector or Seller? Pawn Shop? The AMSEC Amvault Composite Safe Model CF4524 Fire Rating 2 Hours (UL) TL-30 Rated Burglary Safe is just one in a series of 7 extreme Hi-Security safes. Depending on the size you need will depend on the model needed. With better than twice the protection of a lower class rating, the AMSEC Fire & Burglary Composite Safe is sure to save you money. (Contact your insurance agent to see how much the premium savings are)

    To pass the severe Underwriters Laboratory TL-30 Burglary Test, the AMSEC Model CF 4524 Burglary & Fire Safe includes a door with an overall thickness of 5-3/4" and is constructed with a 2-3/4" defense barrier of outer and inner steel plates that create a single structure. The insulation between the plates is a unique, high density fire and burglary resistant composite material that includes a proprietary amalgamation of nuggets and steel fibers to withstand concentrated attacks with the most sophisticated equipment used by burglars today.

    The AMSEC Fire & Burglary Composite Safe offers a massive solid steel hard plate covering the entire door. The door is equipped with six massive 1-1/2" diameter chrome plated solid steel locking bolts. The entire boltwork mechanism is also protected by a spring operated detent system that allows the bolts to stay in the retracted position when the door is opened and automatically engage when the door is closed. The U.L. listed Group II key changeable combination lock is protected by a massive drill shattering hard plate and two additional spring loaded devices.

    The AMSEC Model CF 4524 Burglary & Fire Safe body has a total protective thickness of 3-1/2" with a composite material similar to the door. A reinforced drill resistant door frame protects the door and each individual bolt chamber from severe side attacks while a proprietary inner barrier protects against peeling attacks.

    The AMSEC Fire & Burglary Composite Safe also feature a two hour, 350 F factory fire rating. Tested at temperatures up to 1850 F without the inside exceeding 350 degrees.

    The AMSEC Amvault Composite Safe Model CF4524 Fire Rating 2 Hours (UL) TL-30 Rated Burglary Safe has three shelves standard and has numerous other options that include custom interiors, electronic locks, glass relocker and many more. Contact your Safe and Vault Store Security Professional at 1-800-207-2259 for the best way to protect that which is important to you.

    AMSEC CF4524 AMVAULT TL-30 Fire Rated Composite Safe

    AMSEC Safe

    Authorized Dealer

    Model:CF4524

    Availability :Usually Ships in 50 Business Days
    • Dimensions:
    • Outside: 52.00" H X 31.00" W X 29.50" D
    • Inside: 45.00" H X 24.00" W X 20.00" D
    • Interior Cubic Feet: 12.5
    • Weight: 2311.00
    • Burglar Rating: TL-30 Learn More
    • Fire Rating: 2 Hours
    Note: This item is over 2000lbs. A forklift or loading dock is required.
    Free Shipping
    Made in USA

    Call 800-207-2259 for pricing
