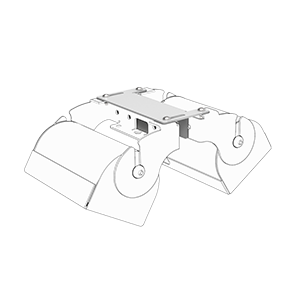

The Contacta STS-S23-BRKT-C is the dual-clamp mounting bracket for the Contacta STS-S23 Overhead Speaker. It clamps over the top edge of a freestanding glass or safety partition and holds two STS-S23 speakers back-to-back, one facing each side of the glass, so a single teller or agent position can serve customers on both sides of the same partition. The clamp jaws adjust from 2 mm to 20 mm to fit typical retail, banking, and ticket-window glass without drilling.
Both required STS-S23 speakers are sold separately. Once the bracket is clamped in place, the two speakers adhere to the bracket with the included adhesive pads, are secured with the included hardware, and the two speaker cables run from the bracket back to the amplifier and microphones handling each side of the counter. Specify this mounting solution when the glass has an exposed top edge and you want a single window position to serve customers on both faces of the glass, typical of double-sided bank teller pods, ticket kiosks that face two lines, or information counters in airport concourses.
The bracket body is mild steel with a powder-coated RAL 9006 semi-gloss finish, a light metallic grey that reads neutral against most window frames, glass edging, and speaker housings. Overall footprint is compact at 3.77 inches wide by 1.92 inches deep by 0.98 inches tall, so it sits low on the top edge of the glass and stays visually subordinate to the two speakers it supports.
If you only need a single speaker facing one direction, the STS-S23 ships with its own single-glass clamp and does not need this bracket. The STS-S23-BRKT-C is specifically for back-to-back installations that pair two STS-S23 speakers on the same glass panel.
If you have questions about the STS-S23-BRKT-C, whether your glass thickness falls in the 2-20 mm clamp range, or how to pair it with an amplifier and microphones on both sides of a double-sided teller window, please call us at 800-207-2259.
Features:
Applications:
Specifications:
The Contacta STS-S23-BRKT-C is the dual-clamp mounting bracket for the Contacta STS-S23 Overhead Speaker. It clamps over the top edge of a freestanding glass or safety partition and holds two STS-S23 speakers back-to-back, one facing each side of the glass, so a single teller or agent position can serve customers on both sides of the same partition. The clamp jaws adjust from 2 mm to 20 mm to fit typical retail, banking, and ticket-window glass without drilling.
Both required STS-S23 speakers are sold separately. Once the bracket is clamped in place, the two speakers adhere to the bracket with the included adhesive pads, are secured with the included hardware, and the two speaker cables run from the bracket back to the amplifier and microphones handling each side of the counter. Specify this mounting solution when the glass has an exposed top edge and you want a single window position to serve customers on both faces of the glass, typical of double-sided bank teller pods, ticket kiosks that face two lines, or information counters in airport concourses.
The bracket body is mild steel with a powder-coated RAL 9006 semi-gloss finish, a light metallic grey that reads neutral against most window frames, glass edging, and speaker housings. Overall footprint is compact at 3.77 inches wide by 1.92 inches deep by 0.98 inches tall, so it sits low on the top edge of the glass and stays visually subordinate to the two speakers it supports.
If you only need a single speaker facing one direction, the STS-S23 ships with its own single-glass clamp and does not need this bracket. The STS-S23-BRKT-C is specifically for back-to-back installations that pair two STS-S23 speakers on the same glass panel.
If you have questions about the STS-S23-BRKT-C, whether your glass thickness falls in the 2-20 mm clamp range, or how to pair it with an amplifier and microphones on both sides of a double-sided teller window, please call us at 800-207-2259.
