Champion CO38 Out-Swing Vault Door | 83" x 38"

$ 6,385.00
$ 7,999.00

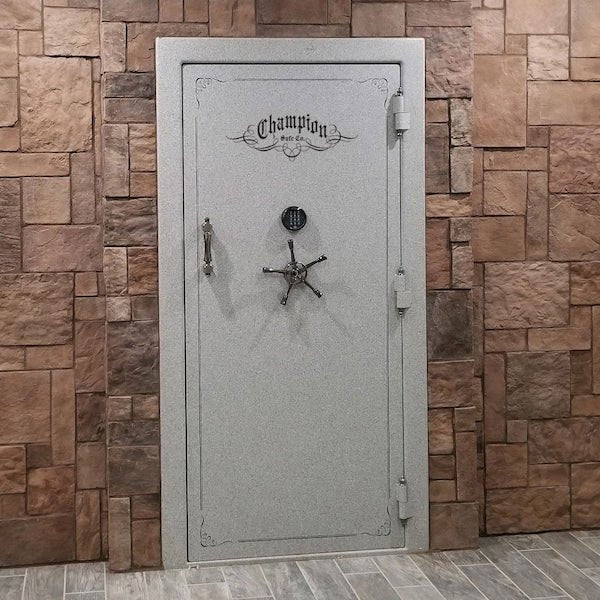

Champion CO38 Out-Swing Vault Door Installed

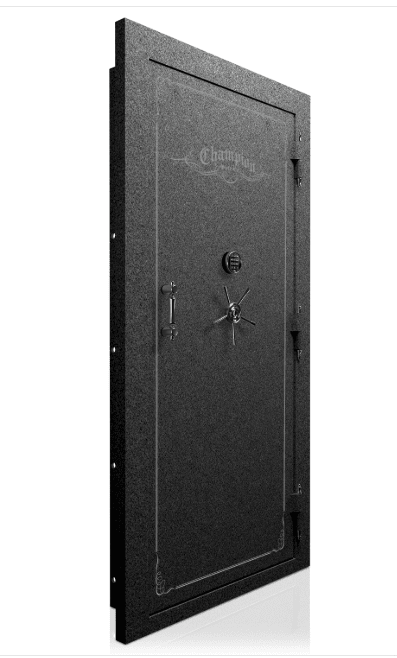

Champion CO38 Out-Swing Vault Door Granite Finish
Champion CO38 Out-Swing Vault Door | 83" x 38"

The Champion Out-Swing Vault Door transforms any room in your home or business into a dedicated, secure space, providing the storage capacity, accessibility, and protection that no gun safe can match. Built with the same structural philosophy and advanced materials as Champion's top-tier safe lineup, this vault door delivers serious protection without compromising craftsmanship or appearance. Whether you're securing a dedicated gun room, creating a panic room, or protecting high-value assets in a commercial space, the Champion Out-Swing Vault Door is engineered to perform.

At the core of the door is a 4-5/8" thick double-plated steel construction, two thick A36 carbon steel panels with sandwiched fire insulation, a design that delivers greater rigidity and better fire protection than a single-plate door. The 1/4" outer steel plate is backed by a full 12-gauge inner steel panel and a 1/4" steel plate door frame, giving the entire assembly exceptional resistance to forced entry. Twenty-four active 1-1/2" locking bolts engage on all sides of the door, and Champion's boltworks are all active, no deadbolts. The delta-shaped triangular frame reinforcement adds structural strength second to none, and external ball-bearing hinges support the door's weight while providing a wider, more convenient opening radius.

Three layers of 5/8" Type X fire insulation protect the contents of your vault room against fire and heat, and a quick-release interior lever ensures you can always exit from within, an important safety feature for any safe room application. The out-swing configuration is ideal for maximizing usable interior space, and the door installs into a standard 83" H x 38" W rough opening in concrete, block wall, or framed construction. Finish options include gloss, textured, and two-tone, with your choice of silver or black pinstriping and hardware.

As an authorized Champion dealer, we're here to help you plan your installation. Call us at 800-207-2259 Monday through Friday, 8AM to 5PM PST.

Features

Door Construction

  • 1/4" A36 carbon steel plate outer door
  • Full 12-gauge steel plate inner door
  • 1/4" steel plate door frame
  • 4-5/8" thick double-plate steel door — two steel panels with sandwiched fire insulation for greater rigidity and security
  • External ball-bearing hinges for wider door opening and greater rigidity

Boltworks

  • 24 active 1-1/2" locking bolts
  • All active bolts — no deadbolts
  • Quick-release interior lever prevents accidental lock-in and allows fast emergency exit

Fire Protection

  • 3 layers of 5/8" Type X fire insulation

Frame

  • Delta-shaped triangular frame reinforcement for maximum structural strength and rigidity
  • Door frame dimensions: 85.13" H x 44.38" W

Lock & Security

  • Choice of electronic or mechanical dial lock
  • ASTM Certified

Finish & Configuration

  • Available in out-swing configuration
  • Multiple finish options: gloss, textured, and two-tone
  • Choice of silver or black pinstriping and logo
  • Interior options: Standard or All Shelf

Installation

  • Rough door opening: 83.00" H x 38.00" W
  • Designed for concrete, block walls, or framed openings

Specifications

  • Rough Opening: 83.00" H x 38.00" W
  • Door Frame Dimensions: 85.13" H x 44.38" W
  • Weight: 875 lbs.
Choosing your first vault door? Our 7-decision buying guide walks through swing, frame, lock, and steel choices. Read the guide →
Or browse all vault doors → to compare other models.

Frequently Asked Questions

Is shipping really free?

Yes. Free delivery is included on every safe we sell, anywhere in the lower 48 states. The specific delivery method depends on the safe's weight: small package delivery for under 150 lbs, curbside, or garage delivery for heavier safes. See full shipping details →

How long will this take to arrive?

Shipping timelines vary by product. Check the availability status at the top of this page for the estimated ship date. Once shipped, transit time typically runs 5–10 business days, depending on your location. You'll receive tracking when the safe leaves the warehouse. Safes under 150 lbs ship via UPS or FedEx Ground, no appointment needed. Safes weighing 150 lbs or more ship via freight (LTL); the freight carrier will contact you directly to schedule a delivery appointment once the safe reaches your local terminal.

Can you deliver it inside my house and bolt it down?

We don't provide inside delivery directly, but we work with third-party installers across the country who do. Here's how it works: call us at 800-207-2259 for a recommendation in your area, and we'll provide the names and phone numbers of installers we've worked with. You contact the installer directly to arrange pricing for delivery and installation. Once you've agreed on a price, place your order with us using the installer's address as the shipping destination. The installer receives the safe, inspects it, and schedules your final delivery appointment. Some installers prefer to pick the safe up directly from the freight terminal. See inside delivery details →

Will this fit through my doorway?

Check the product's exterior dimensions (listed above) against your narrowest passage, interior doorways, stair landings, and tight turns. Most people remove the safe from the pallet before moving it indoors, so the safe's actual dimensions are what matter for doorways. Standard interior doorways (30–32" clear) accommodate most residential safes, but measure before ordering. Call us if you're uncertain. See where to locate your safe →


Can I change the combination myself?

Electronic locks: yes; it takes about 30 seconds. Instructions are included with your safe. Mechanical dial locks: no, changing a dial combination requires a licensed safe technician. Important: attempting to change a dial combination yourself (or having an unlicensed locksmith do it) voids the lock warranty. A licensed safe tech maintains the warranty. See lock operating instructions →


What if it arrives damaged?

Call us immediately — while you have 24 hours to report damage, calling right away gets the claim filed faster. Take photos of the damage and packaging before moving anything. For minor cosmetic damage, we typically send touch-up paint plus a partial refund. For significant damage, we send replacement parts or arrange a full replacement. Order Protection (optional at checkout) speeds refund payouts to 48–72 hours vs. 30–60 days through standard freight claims; replacement safes ship on the manufacturer's normal timeline regardless. See receiving your safe →

What's your return policy?

We offer a 30-day return policy on unused, in-original-condition products. The return freight for a heavy safe is substantial, so we strongly encourage you to call us before ordering if you're unsure about fit or configuration. See full return policy →

Can I place my order by phone?

Yes. Call us Monday–Friday, 8am–5pm Pacific at 800-207-2259. You have two options: we can take the full order by phone (we pause the call recording before you read your card number, so payment info is never stored), or we can build your order and email you a payable invoice link so you can enter your own payment details securely.

Champion Safes

Authorized Dealer

Model:CO38

⏱ Made to Order Usually Ships in 12-15 Weeks

Ships from factory warehouse. Transit time not included.

  • Dimensions:
  • Outside: 83.00" H x 38.00" W
  • Weight: 875
  • Flange: 85.13" H x 44.38" W
  • Rough Opening: 83.00" H x 38.00" W
