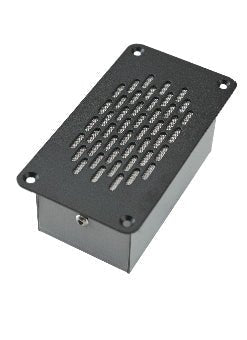

The Contacta STS-S61 is the flush-mounted customer-side speaker module that ships in Contacta's flush-mount window intercom kits, and it is available as a standalone unit for installers building custom systems or replacing a failed customer-side speaker in an existing Contacta installation. Flush-mounted speakers install directly into a cutout in the counter surface, so the only part visible from the customer side is a thin perforated faceplate flush with the countertop, keeping sightlines across the window completely clear and giving the service counter a cleaner finish than a surface-mounted speaker that sits on top. That makes the STS-S61 the right choice for premium service-counter installations, high-visibility public spaces, and any counter where visual cleanliness matters more than install simplicity.
The STS-S61 is designed to drop into a counter cutout sized for the faceplate, with the speaker body recessing roughly 2 inches into the void below. Installation requires cutting a mounting hole in the counter surface at the install location, so plan for either a counter the installer can cut on site or a pre-fabricated countertop with the cutout already machined. Once mounted, the faceplate sits flush with the counter and the body sits out of sight below, which keeps the customer-side surface free of anything protruding above the countertop.
The STS-S61 meets Contacta's commercial-grade construction standard: mild steel body with a Zintec case and a powder-coated faceplate finish that resists chipping and holds up in high-traffic public spaces. Two finish options are available for the standalone unit: Grey Powder-Coated Leatherette and Black Textured Powder-Coated.
The STS-S61 delivers 5 watts RMS into a 4-ohm impedance, with an output SPL of 85 dB at 1 watt at 1 meter and a frequency response of 150 Hz to 10,300 Hz. That is the same speaker output specification the STS-A31H window intercom amplifier is tuned to drive, so the STS-S61 pairs directly with the STS-A31H at either the 4-ohm or 8-ohm speaker output tap and delivers clean, intelligible speech at counter distances without added crossover or matching hardware.
The STS-S61 is the flush-mounted customer speaker Contacta uses in the STS-K003 flush-mounted window intercom kit and the STS-K003-B-MESH-KIT weather-resistant flush-mount kit. If you are running either kit and the customer-side speaker has failed, this is the correct replacement. For a complete customer-side pair, you will also need a customer microphone such as the STS-M56 omni-directional flush-mount microphone (shipped in the STS-K003), the STS-A31H amplifier, and the PS-55 power supply.
If you prefer a surface-mounted customer speaker that sits on top of the counter without cutting a hole, the Contacta STS-S60 surface-mounted customer speaker is the direct surface-mount equivalent with the same audio specifications.
If you're not sure whether the STS-S61 is the right replacement for your installation, please call us at 800-207-2259.
Features:
Applications:
Physical Data:
Technical Data:
The Contacta STS-S61 is the flush-mounted customer-side speaker module that ships in Contacta's flush-mount window intercom kits, and it is available as a standalone unit for installers building custom systems or replacing a failed customer-side speaker in an existing Contacta installation. Flush-mounted speakers install directly into a cutout in the counter surface, so the only part visible from the customer side is a thin perforated faceplate flush with the countertop, keeping sightlines across the window completely clear and giving the service counter a cleaner finish than a surface-mounted speaker that sits on top. That makes the STS-S61 the right choice for premium service-counter installations, high-visibility public spaces, and any counter where visual cleanliness matters more than install simplicity.
The STS-S61 is designed to drop into a counter cutout sized for the faceplate, with the speaker body recessing roughly 2 inches into the void below. Installation requires cutting a mounting hole in the counter surface at the install location, so plan for either a counter the installer can cut on site or a pre-fabricated countertop with the cutout already machined. Once mounted, the faceplate sits flush with the counter and the body sits out of sight below, which keeps the customer-side surface free of anything protruding above the countertop.
The STS-S61 meets Contacta's commercial-grade construction standard: mild steel body with a Zintec case and a powder-coated faceplate finish that resists chipping and holds up in high-traffic public spaces. Two finish options are available for the standalone unit: Grey Powder-Coated Leatherette and Black Textured Powder-Coated.
The STS-S61 delivers 5 watts RMS into a 4-ohm impedance, with an output SPL of 85 dB at 1 watt at 1 meter and a frequency response of 150 Hz to 10,300 Hz. That is the same speaker output specification the STS-A31H window intercom amplifier is tuned to drive, so the STS-S61 pairs directly with the STS-A31H at either the 4-ohm or 8-ohm speaker output tap and delivers clean, intelligible speech at counter distances without added crossover or matching hardware.
The STS-S61 is the flush-mounted customer speaker Contacta uses in the STS-K003 flush-mounted window intercom kit and the STS-K003-B-MESH-KIT weather-resistant flush-mount kit. If you are running either kit and the customer-side speaker has failed, this is the correct replacement. For a complete customer-side pair, you will also need a customer microphone such as the STS-M56 omni-directional flush-mount microphone (shipped in the STS-K003), the STS-A31H amplifier, and the PS-55 power supply.
If you prefer a surface-mounted customer speaker that sits on top of the counter without cutting a hole, the Contacta STS-S60 surface-mounted customer speaker is the direct surface-mount equivalent with the same audio specifications.
If you're not sure whether the STS-S61 is the right replacement for your installation, please call us at 800-207-2259.
