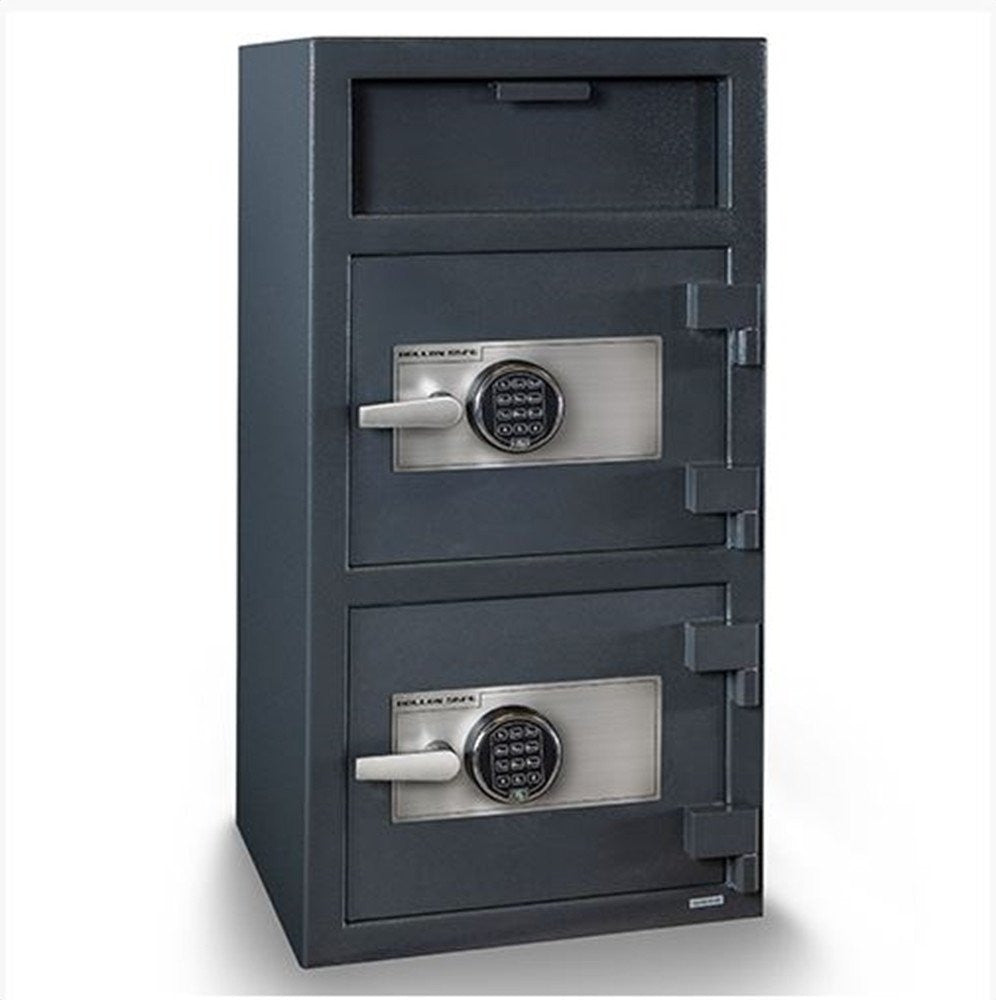

The Hollon FDD-4020EE is a 40-inch B-rated commercial depository safe built for operations that need two full-size independently locked compartments under one body. Shift employees drop daily receipts through the anti-fish-baffled front slot into the top compartment, which the shift supervisor opens with the top electronic lock at the end of the shift or before the armored-car pickup. The bottom compartment opens with a second electronic lock on its own code, holding cash trays, change drawers, backup floats, or any portion of the day's take you want kept behind a second lock under a different access rotation. For restaurants, bars, convenience stores, and multi-register retail cash offices that run several shifts between pickups, the two-compartment layout keeps responsibilities split without adding a second safe to the floor.
Both locks are UL Listed Type 1 Sargent& Greenleaf electronic locks, the standard for commercial-grade electronic locks. Each compartment runs on its own independent code, so the shift supervisor emptying the top deposit compartment never sees the bottom compartment and the manager clearing the bottom compartment does not need to share a code with the shift team. Codes can be changed in the field as staff rotates, so a departing supervisor does not walk out knowing the current combination for either compartment. Each lock includes a lockout penalty on failed-code attempts, so repeated wrong-code tries lock out that keypad for a timeout period. If you need per-user access logging for compliance, the FDD-4020EE can be upgraded at purchase to audit-trail-capable electronic locks that record who opened each compartment and when; call us at 800-207-2259 to configure the audit lock upgrade.
Under the hood, the FDD-4020EE is built to Hollon's B-rated commercial depository standard: a ½-inch solid steel door with 1¼-inch solid steel active locking bolts on each compartment, a drill- and ballistic-resistant hard plate that protects each lock body and the re-locker against rotary drill and ballistic (impact or blast) attacks, and an internal spring-loaded re-locking device that engages if either primary lock is punched or drilled out. A heavy-duty dead bar prevents door removal during a forced entry attempt, and four pre-drilled anchor holes let you bolt the safe to a concrete floor or steel base plate. At 258 pounds, the FDD-4020EE is heavy enough that two people should handle setup, and you should use the anchor holes once the safe is in position.
An anti-fish baffle on the deposit slot prevents the fishing attack that otherwise defeats basic deposit slots. Staff drops cash, checks, or deposit bags through the slot, and the contents fall through into the sealed top compartment, inaccessible from the slot once the deposit is in. The deposit slot opening measures 10 inches high by 15.5 inches wide and accepts drops up to 2 inches thick, which accommodates standard cash deposit bags, bank envelopes, folded currency straps, and small coin bags.

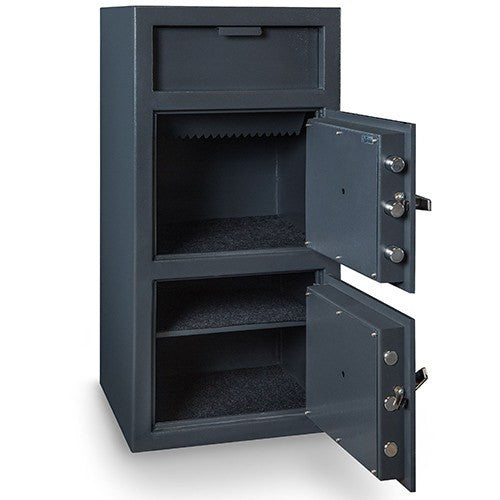

Inside, the FDD-4020EE provides 2.04 cubic feet in the top compartment (11.13 inches tall by 19.75 inches wide by 16 inches deep) and 2.83 cubic feet in the bottom compartment (15.50 inches tall by 19.75 inches wide by 16 inches deep), with a removable interior shelf. The top compartment is sized for a shift's worth of accumulated deposits before the next clear-out, and the bottom compartment is sized for the larger cash-tray, change-drawer, or float-reserve volume that typically stays with the manager rather than moving with the deposits. The exterior is 40 inches tall by 20 inches wide by 20 inches deep, fitting under most back-office counters at 40 inches or standing against a manager's office wall.
Depository safes are designed for short-term cash storage: shift-end drops, multiple registers' close-outs, deposits held for the next armored-car pickup. The FDD-4020EE is sized for operations that need both the deposit workflow and a second locked compartment under separate access, where splitting the day's cash between a deposit zone and a tray zone saves time and keeps responsibilities clear across shifts. For longer-term secured cash storage, a TL-15 or TL-30 rated safe is the right pick instead.
If you prefer mechanical dial locks on both compartments instead of the electronic keypads, the Hollon FDD-4020CC is the same chassis with dual UL Listed Group 2 Sargent & Greenleaf combination dials. If a single-compartment layout fits your workflow, the Hollon FD-4020E is the single-door electronic equivalent in the same 40 by 20 by 20 chassis with 4.96 cubic feet of interior. If you need an inner locking drawer inside the main compartment for dual-control access to accumulated cash rather than two full-size compartments, the Hollon FD-4020EILK adds a dual-key inner drawer inside the single-door electronic-lock chassis.
If you have questions about the FDD-4020EE, how to size a depository safe for your daily cash volume, or how it compares to the FDD-4020CC, FD-4020E, or FD-4020EILK, please call us at 800-207-2259.
Features:
Construction
Deposit Slot
Lock and Boltwork
Interior
Anchoring
Specifications:
Lock:
