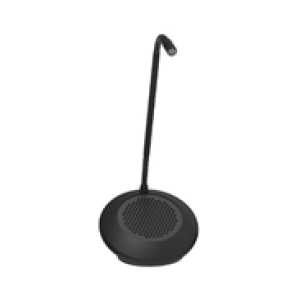

The Contacta STS-SU2 is a combined speaker and directional microphone pod for the staff side of a window intercom installation, designed as a lower-profile and surface-mountable alternative to Contacta's pyramid-base STS-SU1-3W staff unit. The pod form factor features a round 4.3-inch-diameter base with a cardioid microphone on a flexible stem extending up to 12.9 inches, giving the operator the same close-range voice pickup as the SU1 series in a lighter ABS plastic housing that can sit freestanding on the counter or be permanently surface-mounted to the operator desk.
The surface-mount option is the STS-SU2's main differentiator from the SU1 series. The round pod base can be bolted or adhered directly to the operator desk, which keeps the unit from being accidentally shifted, bumped, or walked off during shift changes, and gives a cleaner installed look at a dedicated service counter where the staff position doesn't move. If you don't want to permanently mount the unit, the pod also works as a freestanding desktop unit the operator can slide into position.
The cardioid directional microphone picks up the operator's voice from directly in front of the microphone head and rejects sound from the sides and rear, which matters at a busy teller window or ticket counter where lobby noise, HVAC fan noise, and the next operator position's conversation would otherwise bleed into the customer-side audio. The flexible stem lets the operator position the microphone head at the right height and angle for their seated or standing posture.
The 5-watt speaker runs at 4-ohm impedance with 85 dB SPL output at 1 watt at 1 meter, and a 150 Hz to 10,300 Hz frequency response tuned for clear speech reproduction at desk distance. That is the same speaker output specification the STS-A31H window intercom amplifier is tuned to drive, so the STS-SU2 pairs directly with the STS-A31H without added crossover or matching hardware. A complete install also needs a customer-side speaker and microphone and the PS-55 power supply.
The STS-SU2 does not include a mute switch on the pod itself. For installations where the operator needs on-the-fly mute control (for private side conversations or manager huddles without the customer overhearing), the STS-SU1-3W adds a three-position dual mute switch in the pyramid-base form factor. For the customer side, the STS-SU1-NM is a matching no-mute unit in the same pyramid-base chassis.
The STS-SU2 ships in a single Black RAL 9005 powder finish on an ABS plastic housing. At 4.3 inches in diameter at the base and 12.9 inches tall at the top of the microphone stem, the unit has a compact footprint on the operator desk.
If you're not sure whether the STS-SU2 is the right staff-side unit for your installation, please call us at 800-207-2259.
Features:
Applications:
Physical Data:
Technical Data - Speaker:
Technical Data - Microphone:
